    5.7" LED 135db Medical Vet Ultrasonic Machine Pig Pregnancy Ultrasound Scanner

    Ask Lasest Price
    Brand Name : Teveik
    Model Number : TEVEIK M6
    Certification : CE
    Price : negotiate
    Payment Terms : T/T, western union, paypal
    Supply Ability : 50000PCS/Month
    • Product Details
    • Company Profile

    5.7" LED 135db Medical Vet Ultrasonic Machine Pig Pregnancy Ultrasound Scanner

    CE Handheld Medical Vet Ultrasonic machine pig pregnancy ultrasound scanner

    There were more than 18 body position markers


    Display


    5.7-inch LED display


    Probe selection

    1. Abdominal Convex probe: 3.5mhz

    2. micro convex small animal probe:6.5mhz

    3. veterinary rectal probe:6.5mhz- for COW

    4. high frequency linear array probe:7.5MHz

    5. Back-fat probe : 3.5MHz


    Function

    It has automatic back- fat function

    (intelligent one key measurement),

    fast back-fat function

    (mobile reading ruler) and manual back-fat measurement function


    Display mode


    B, B + B, 4b, B + m, m


    Electron focusingfour stage electron focusingFrequency conversionevery probe has five section frequency conversion function

    Function 1

    rotate the image up, down,

    left and right,

    and flip the interface

    in black and white,


    Routine measurement

    distance, perimeter,

    area, volume and angle


    Function 2

    has annotation function, which is convenient for text

    and body mark annotation

    Specialty measurementheart measurement and lean meat rate measurement;Obstetric measurement of 8 kinds of animals
    Function 3has the functions of grid ruler and point ruler, which can read the size of the detected object quicklyCharacter display

    gain, frequency, dynamic, date, time

    Feature 1

    has 256 frame movie playback function,

    which can be played back frame by frame and video playback,

    and can select any image measurement annotation

    to save frame by frame playback;


    Storage


    it can be equipped with 8g memory card and external U disk for storage.

    It can browse pictures and transfer built-in pictures to U disk


    Dynamic range


    0-135db

    Image processing

    gamma correction (0-7),

    frame correlation (0-3),

    line correlation (0-5),

    edge enhancement (0-3),

    left and right flip (0-1),

    sixteen kinds of pseudo color processing

    Blind area≤ 4InterfaceUSB interface, PAL-D / NTSC video, VGA

    The maximum display

    depth

    3.5MHz: 270mm,

    6.5mhz: 189mm,

    7.5MHz: 165mm

    organization harmonic,

    histogram function

    Geometric accuracytransverse ≤ 5%, longitudinal ≤ 5%Resolution

    lateral ≤ 2mm,

    axial ≤ 1mm

    Display magnification16 display modesGain range0-100db
    Near field adjustment range- 31 ~ 0Far field adjustment range0 ~ 31

    Screen Indications

    time and date, video output, TV mode,

    key tone switch,

    parameter mode,

    standby protection,

    Multi-language selection,

    custom gestational age

    and other settings

    Battery power indication,

    U disk indication,

    prompt information display


    Large capacity lithium battery


    imported 18650 standard cell,

    can work for about 4 hours;

    Host size

    245x130x44mm

    (L x W x H)

    Main engine weight740g
    Features

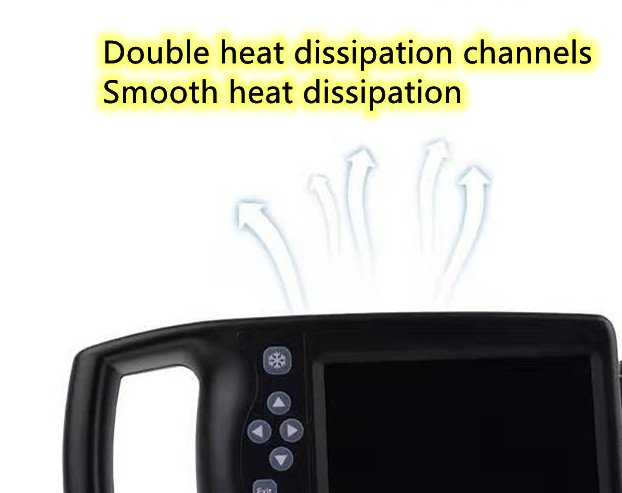

    Double cooling channels,

    more smooth cooling
