Medical Wireless Ultrasound Probe 128 Elements Color Doppler Ultrasound Wifi

    Buy cheap Medical Wireless Ultrasound Probe 128 Elements Color Doppler Ultrasound Wifi from wholesalers

    Buy cheap Medical Wireless Ultrasound Probe 128 Elements Color Doppler Ultrasound Wifi from wholesalers
    • Buy cheap Medical Wireless Ultrasound Probe 128 Elements Color Doppler Ultrasound Wifi from wholesalers
    • Buy cheap Medical Wireless Ultrasound Probe 128 Elements Color Doppler Ultrasound Wifi from wholesalers

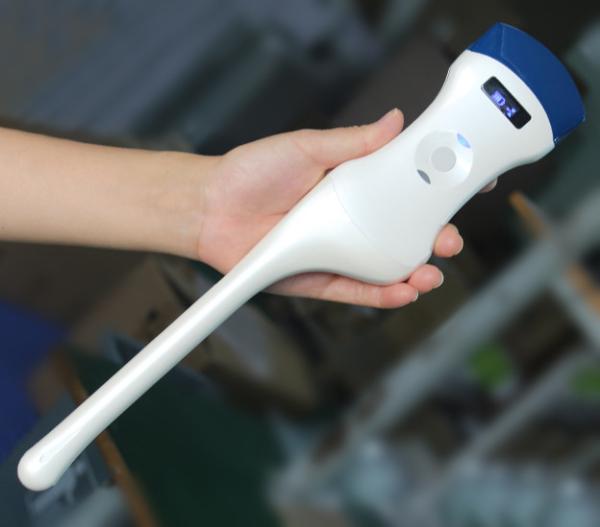

    Medical Wireless Ultrasound Probe 128 Elements Color Doppler Ultrasound Wifi

    Ask Lasest Price
    Brand Name : Teveik
    Model Number : WCU03CV
    Certification : ISO13485
    Payment Terms : T/T,Western Union,Paypal payments for offline orders
    Supply Ability : 500PCS/month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Medical Wireless Ultrasound Probe 128 Elements Color Doppler Ultrasound Wifi

    Factory Price Wifi Ultrasonic Probe Medical Wireless Color Doppler Ultrasound For Laptop

    doppler ultrasound, portable ultrasound, color doppler ultrasound probe, wireless ultrasound scanner


    Specifications:


    ModelWCU03CLWCU03CV
    TypeConvex + Linear array probeConvex + Transvaginal array probe
    scan modeB, B/M, B+Color, B+PDI, B+PWB, B/M, B+Color, B+PDI, B+PW
    FrequencyConvex3.5/5.0MHz;Linear7.5/10MHz

    Convex3.5/5.0MHz;

    Transvaginal6.5/8MHz

    Display DepthConvex90~305mm;Linear20~100mm

    Convex90~305mm;

    Transvaginal40~100mm

    Elements128128
    Probe Radius/LengthConvex60mm;Linear40mmConvex60mm; Transvaginal13mm
    Wifi type802.11n/2.4G802.11n/2.4G
    Image Adjust

    B:GN(Bgain),D(depth), F(frequency),ENH(enhancement), TGC, DR(dynamicrange);

    Color/PW: GN,PRF,WF,Steer,Box;

    B:GN(Bgain),D(depth), F(frequency),ENH(enhancement), TGC, DR(dynamicrange);

    Color/PW: GN,PRF,WF,Steer,Box;

    Measure

    B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC);

    B+M: Heart Rate, Time, Distance;

    B+PW: Velocity, Heart Rate(2), S/D;

    B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC);

    B+M: Heart Rate, Time, Distance;

    B+PW: Velocity, Heart Rate(2), S/D;

    Cinplay

    Auto and manual, frames can set as

    100/200/500/1000

    Auto and manual, frames can set as

    100/200/500/1000

    Puncture

    function

    assist

    in-plane puncture guide line,

    out-of-plane puncture guide line

    in-plane puncture guide line,

    out-of-plane puncture guide line

    Image/video StorageStore on mobile phones,Tablet PCStore on mobile phones,Tablet PC
    PowerBuilt-in lithium battery, ReplaceableBuilt-in lithium battery, Replaceable

    Battery

    time

    working2-3h according to scan mode2-3h according to scan mode
    Charging modewireless chargingwireless charging
    Bootup

    Platform

    seconds

    dependent,generally<5

    Platform

    seconds

    dependent,generally<5
    Working system

    Android / iOS / Windows Download

    for free

    Android / iOS / Windows Download

    for free

    Standard

    Configuration

    Host:1pcsHost:1pcs
    Dimensions156(w)x60(d)x20(h)mm270(w)x60(d)x20(h) mm
    Package size185(w)x105(d)x55(h) mm520(w)x100(d)x80(h) mm
    Net weight250g300g
    Gross weight750g800g

    Medical Wireless Ultrasound Probe 128 Elements Color Doppler Ultrasound WifiMedical Wireless Ultrasound Probe 128 Elements Color Doppler Ultrasound Wifi

    4. Warranty:

    1) there is any quality problem when you get the products, we will send you the replacement .


    5. The advantages of our products:

    1) Attractive design, high quality and reasonable prices

    2) Advanced processing technology

    3) Advanced detection equipment

    4) high quality raw material


    6. Delivery details:


    1) Our production cycle:

    Item will be shipped within 3-7 working days after we get your Payment, We are always serious on the delivery time, all orders will be checked by us carefully to make sure there is no delay on the shipment.


    2) Shipping Methods:

    a) If order is not very big, we will send you by UPS, DHL, FEDEX, or TNT. Tracking number will be advised after delivery, all of express lead time is about 3-5 working days.

    b) If order is big, we will advise you use Air Freight or Sea freight.


    7. Payment details:


    1) Payment terms:

    a) 100% in advance for Small value .

    b) 50% deposit, 50% before delivery for big value.


    2) We can accept T/T, Western union, Paypal, L/C etc.


    8. About Sample


    1) if you have the product you need , we can send you the sample free

    2) if we have not the product you need, we advice you send us one pcs of sample,

    We can produce it for you .


    9. Provide OEM service


    1) if you have new design or idea, we can support you .

    2) If you have the sample, we can produce it for you .

    3) If you have the drawing , we can produce the product according to your drawings


    10. Our leading products list :


    1) SpO2 Sensor and Disposable SpO2 Sensor

    2) SpO2 Extension Cable and spo2 adapter cable

    3) ECG Cable ,EKG cable , Holter Cable and disposable ECG cable

    4) ECG Electrode

    5) Electrosurgical pencil and Electrosurgical pad

    6) IBP Cable and IBP transducer

    7) Temperature Probe and disposable Temperature Probe

    8) NIBP Cuff and NIBP hose(NIBP tube)

    9) Fetal transducer

    10) disposable CTG belt and reusable CTG belt

    11) EEG Cable and EEG hat (EEG cap)

    12) original Ultrasound probe, compatible ultrasound probe, repair ultrasound probe

    13) Needle Guide for Ultrasound probe

    14) Pulse Oximeter

    Company Information

    TEVEIK,a professional medical manufacturer of patient monitor accessories, which has complete systems of Production, R&D and Sales

    with 11 years development. More than 100 skilled and experienced employees are innovative and fulfill our responsibility to supply better products and services.

    We have a variety of high-quality
    1) SpO2 sensor (Reusable/disposable)

    2) ECG Cable

    3) ECG/EKG Electrode

    4) IBP Transducer

    5) Fetal Transducer

    6) Pulse Oximeter

    7) NIBP Cuff

    8) Medical Bandage

    9) Ultrasound transducer

    10) Repair Ultrasound transducer

    All those products with ISO13485 2003 quality management and CE CFDA certificates.
    Welcome to your enquiry and visit!

    FAQ

    Q1.Are you factory?
    A1.YES. we are an 11 years Medical Factory located in Shenzhen China.

    Welcome to visit our factory at any time.


    Q2.All products have a warranty?
    A2.YES. All products are at least 1 year warranty.


    Q3.What is the shipping way?
    A3.DHL/Fedex/UPS/TNT/EMS/Sea Shipment, it’s up to you.

    Q4. Do you accept OEM/ODM?
    A4. Yes, OEM/ODM is accepted, include BOX design, Logo customs and Carton label

    Q5: Why choose us:

    1. we have 11 years manufacturing experences.


    2. Get ISO13485, SGS, Latex free, Biocompatibility test report and so on.

    3. We provide 1 year warranty

    4. have professional QC team to check and guarantee the quality

    5. Any product from our company will be well tested before delivery, to avoid international

    after sales trouble, make customer satisfied and happy.

    6. Lead time within 3 days

    7. Our customers / legal distributors are from overseas.

    Remarks: for any products from our factory, must be well tested before delivery, to reduce international after sales problem, to make our business happy and relaxed.
